Preferred™ Light Commercial Outdoor Unit

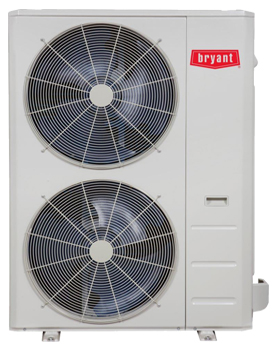

Model 38MBR
Heating and Cooling Comfort that Goes the Distance
Designed to pair with our Preferred™ Series high-static Ducted indoor unit, the 38MBR Ductless single zone heat pump delivers the comfort you need for a new or converted space. No stranger to long-distance connections, this model works efficiently with line lengths of up to 213 feet between the indoor and outdoor unit. This compact and durable model includes an Inverter-controlled compressor for quiet and efficient operation.
Features
Inverter Compressor
Up to 17.4 SEER cooling efficiency
Up to 10.5 HSPF heating efficiency
Sizes: 36 / 48
Available 208/230V
Built-in Basepan Heater
Condenser high temp protection
Refrigerant leakage detection
Quiet outdoor operation, as low as 62.5 dB(A)
Total piping length up to 213 ft.
EFFICIENCY
Up to 17.4 SEER
Up to 8.9 EER
Up to 10.5 HSPF
PERFORMANCE
Outdoor sound: as low as 62.5 decibels
OUTDOOR OPERATING RANGE
Cooling operating range-4° ~ 122° F (-20° ~ 50° C)
Heating operating range-22° ~86°F (-30° ~30° C)
LINE LENGTH
Total piping length 213 ft. (65 m)
REQUIREMENTS 115V and 208/230V
TECHNOLOGY
Inverter Compressor
CAPACITIES
3 - 4 tons
AESTHETICS Heavy-gauge, galvanized steel construction
Primed and coated with a 100% coverage, baked-enamel finish in white
Model 38MBR
Heating and Cooling Comfort that Goes the Distance
Designed to pair with our Preferred™ Series high-static Ducted indoor unit, the 38MBR Ductless single zone heat pump delivers the comfort you need for a new or converted space. No stranger to long-distance connections, this model works efficiently with line lengths of up to 213 feet between the indoor and outdoor unit. This compact and durable model includes an Inverter-controlled compressor for quiet and efficient operation.
